TAPM0605 / TAPM1010

APPLICABLE INDUSTRY

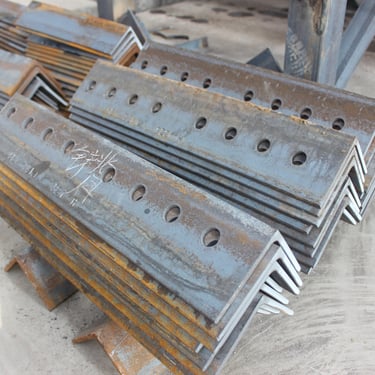

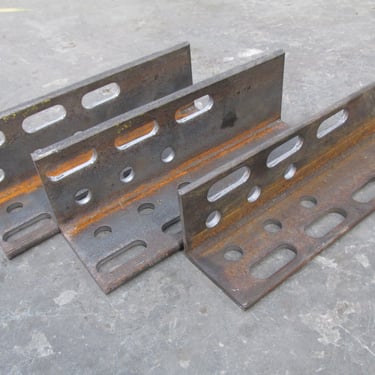

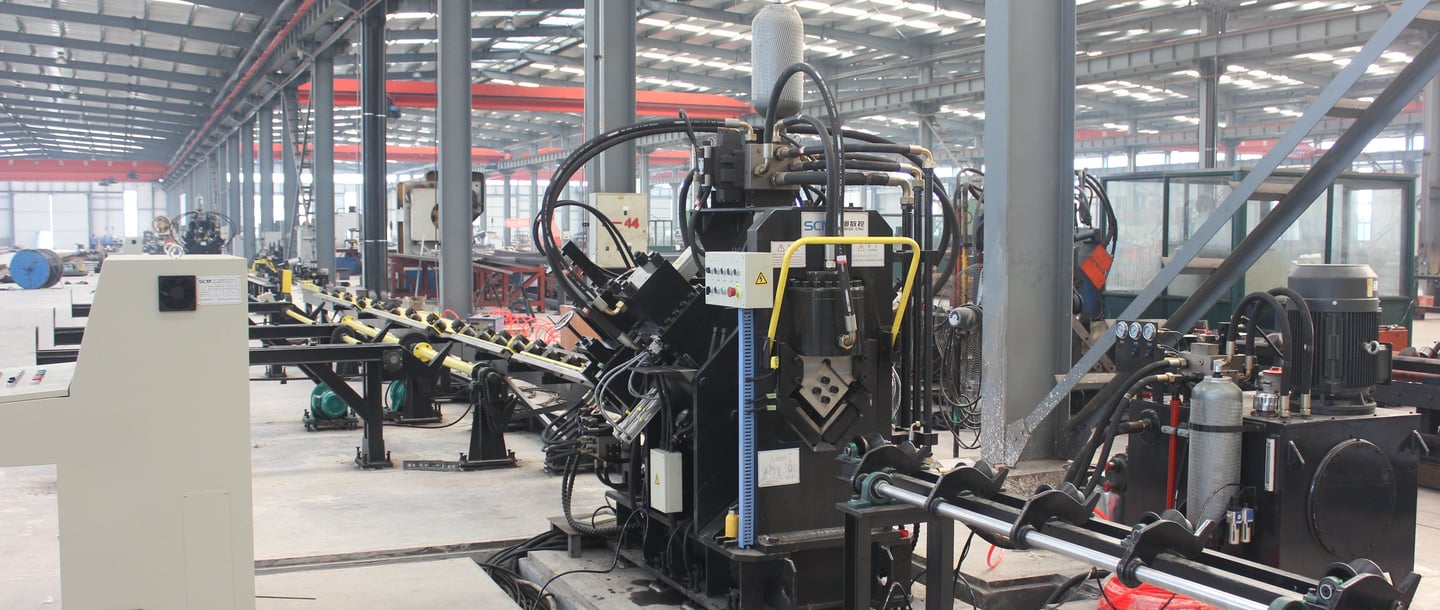

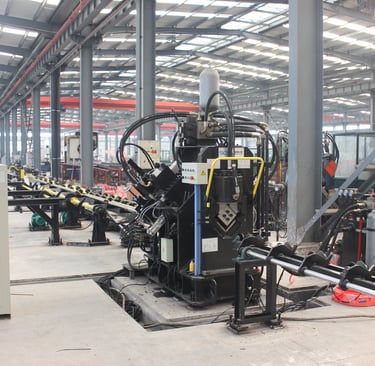

This machine is the automatic special production line used for angle steel marking, punching (round hole, slot hole) and shearing, mainly in the field of angle steel tower industry. electric power fittings, structure storage facilities and steel structure construction industries etc.

PRODUCT FEATURE

• Feeding speed and punching speed are very fast, greatly improve the production efficiency. For 50x50x4mm angles, it can process 9 to 10 tons per 8 hours.

• The pressing angle device, feeding carriage, material supporting device and clamping claws all have obtained national patents protections.

• Adopt PLC mold control, servo motor feeding, high efficiency, stable processing precision.

• Easy programming, adopt instruction programming and lofting software. It can read .NC1 files generated by TEKLA software

• All marking, punching and shearing in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength.

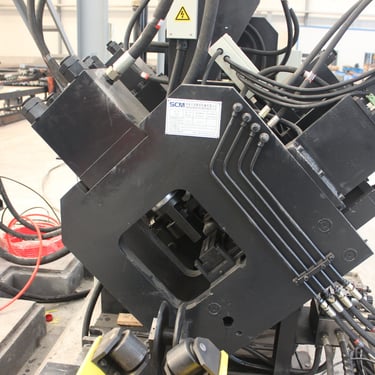

• Marking unit adopts closed frame with good rigidity.

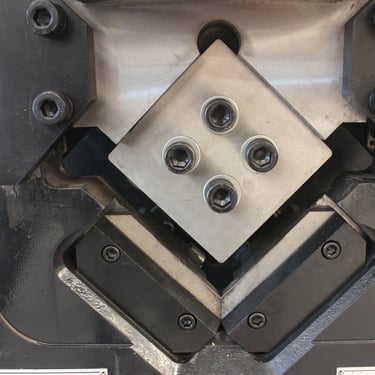

• Single blade shearing, save raw material.

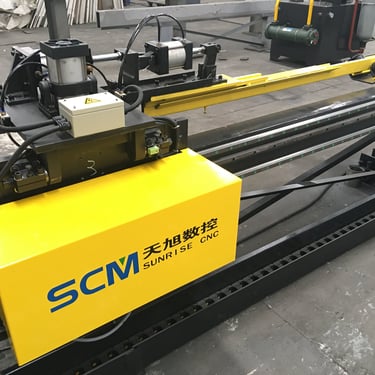

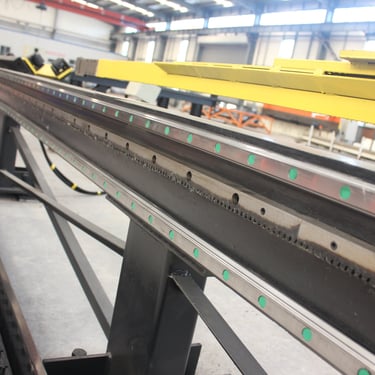

• The feeding conveyor use double linear guides and the carriage is latest design, which improve the speed and accuracy.
